Description

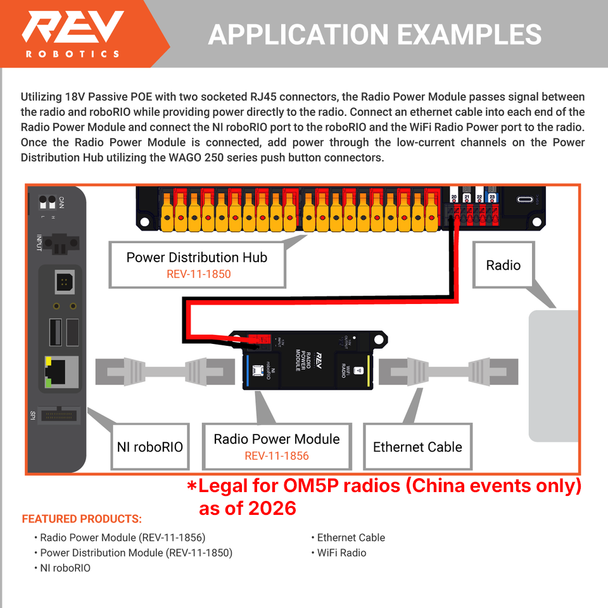

The REV Radio Power Module is designed to keep one of the most critical system components, the OpenMesh OM5P-AC WiFi radio, powered in the toughest moments of the competition. Traditional barrel jacks easily work themselves loose and often require hacks like hot glue to prevent intermittent power losses. The Radio Power Module eliminates the need for powering the radio through a traditional barrel power jack. Utilizing 18V Passive POE with two socketed RJ45 connectors, the Radio Power Module passes signal between the radio and roboRIO while providing power directly to the radio. After connecting the radio and roboRIO, easily add power to the Radio Power Module by wiring it to the low-current channels on the Power Distribution Hub utilizing the color coded push button WAGO terminals.
The REV POE Injector Cable gives FRC teams a simple, reliable way to power their wireless radio through the radio’s “RIO” port. Two power leads branch from the cable for connection to a protected output terminal on the Power Distribution Hub (PDH) with a 10A fuse installed, as specified in the FRC Game Manual. These leads come pre-crimped with ferrules for a clean, secure connection at the PDH. For proper installation, the socket end of the cable must connect to the roboRIO side of the network connection, and the plug end with the power leads must connect to the radio. Incorrect orientation may send power to the wrong device and can damage the roboRIO.
New features were added to the Radio Power Module for the 2024 FRC season, including:
- "WAGO 250 series push button terminals for power" were updated to "WAGO 2601 series latching terminal for power"
NOTES: As of 01/04/2024, orders will ship with the new version of the Radio Power Module.
Features
- Easy to wire
- WAGO 2601 series latching terminal for power
- Two socketed RJ45 connectors accepting standard ethernet cables
- Designed for use with the OpenMesh OM5P-AC
- Compatible with other devices that accept 18V passive POE
Specifications
- Input Voltage: 4.75V - 18V
- Output Voltage: 18V
- Maximum Output Current: 1A
- Mounting Holes: #10 Clearance (0.197"/5mm) on 0.5in pitch
- Physical Specifications:
- Length: 3.375in
- Width: 1.250in
- Height: 0.875in
- Weight: 41g (0.09lbs)
Documentation
- ION Build System Guide
- Radio Power Module Specifications and Features
- Radio Power Module Getting Started Guide
CAD & Drawings
- coming soon
