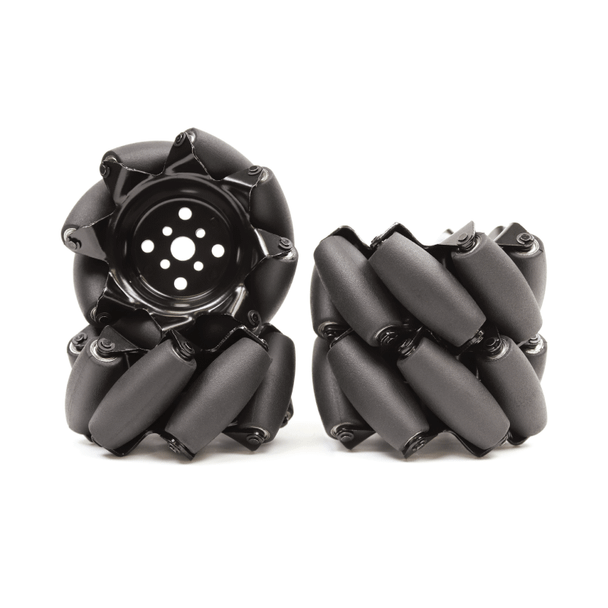

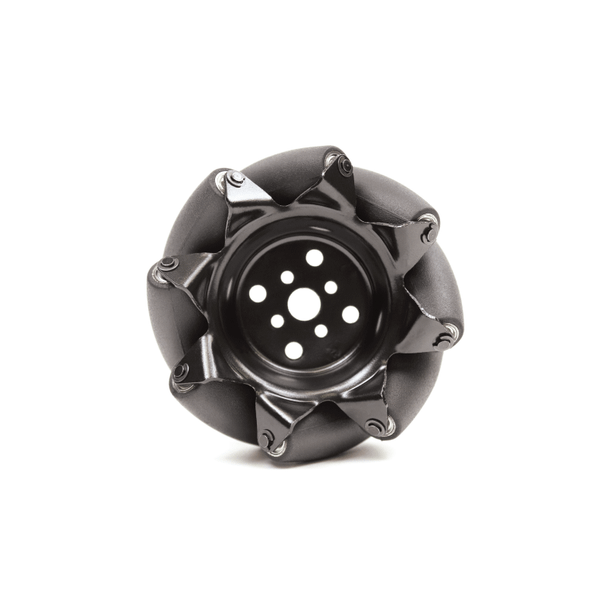

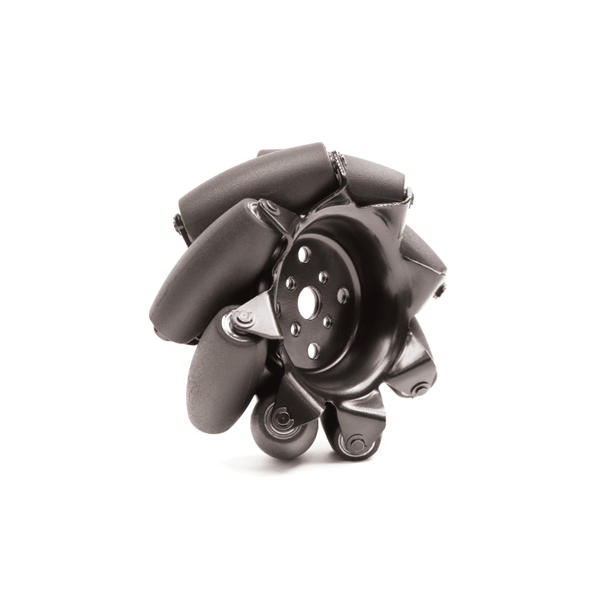

75mm Mecanum Wheel Set

Maximum Purchase:
50 units

Tested for the rigors of competition, REV Mecanum Wheels are steel plates with rollers supported by ball bearings allowing for the perfect combination of wheel rigidity and roller movement. Included in the set of wheels are Universal Hex Adapter making mounting to 5mm hex shaft easy. With a 75mm diameter these wheels allow for a lower profile giving more space for building mechanisms and space for game elements.


  • Hub Material: Steel
  • Roller Material: NBR
  • Diameter: 75mm
  • Width: 40mm
  • Weight (single wheel without Universal Hex Adapter): 179 g (0.395 lbs)

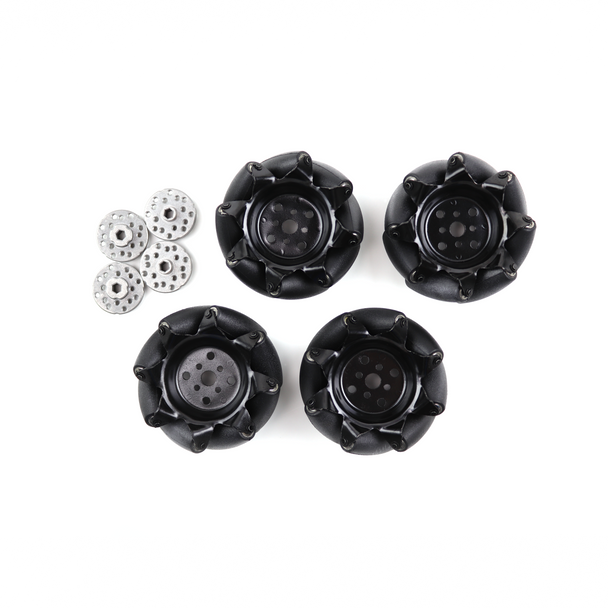

Kit Contents

  • QTY 2 - Left 75mm Mecanum Wheel
  • QTY 2 - Right 75mm Mecanum Wheel
  • QTY 4 - Universal Hex Adapter V2 (REV-41-1833)*

   *Wheel kits sold before January 10, 2020 included QTY 4 Universal Hex Adapter (REV-41-1216) in place of of REV-41-1833


CAD & Drawings
