Description

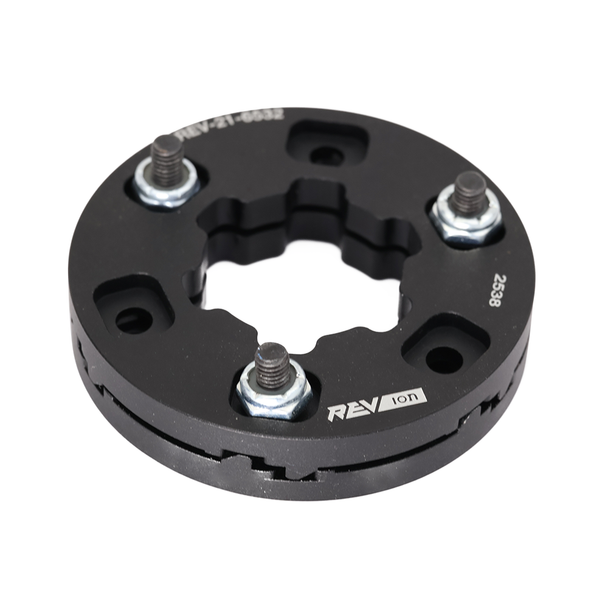

The Locking Shaft Collar MAXSpline is a compact, purpose built clamping solution for securing components to a MAXSpline shaft. Designed as a thin aluminum plate, it can be paired with a second collar or mounted directly to any MAXSpline wheel or sprocket that features standard nut pocket slots. The collar uses an internal wedge mechanism that engages as the assembly is tightened. As the collar is drawn toward its mating plate or wheel, the wedges cause a counter twisting action between it and its interface thus creating a strong, reliable grip on the MAXSpline profile.
Using common #10-32 hardware and nyloc nuts, teams can create a highly rigid interface for drivetrains, intakes, linear systems, or any mechanism requiring a solid axial lock on a MAXSpline shaft. The result is a lightweight, low profile, and repeatable solution that integrates cleanly into existing MAXSpline ecosystem components.
Features
- Wedge based locking system creates a secure, high strength clamp on MAXSpline shafts
- Interfaces with a second collar or directly mounts to MAXSpline wheels and sprockets using standard nut pocket slots
- Compact plate design provides strong axial retention without adding unnecessary bulk
- Compatible with #10-32 hardware and nyloc nuts for a dependable mechanical lock
- Designed around a 1 inch bolt circle with six #10 clearance holes for straightforward integration
Specifications
- Material: 6061 Aluminum
- Finish: Anodized Black
- Total Thickness: 8.5mm (0.33in)
- Outer Diameter: 66.8mm (2.63in)
- Mounting Holes: 6x #10 clearance holes on 1in bolt circle
- Weight: 38g (0.084lb)
