Description
MAXSpline Shaft Collars provide mechanical retention for components mounted on MAXSpline Shaft and use a two piece aluminum clamping design for secure attachment. Both versions are black anodized for durability and integrate cleanly within the REV ION System. The narrow profile collar is intended for applications with strict space or weight constraints. It uses M3 hardware to minimize overall size, resulting in a 0.25in wide collar with a 1.88in outer diameter. Its compact geometry allows it to retain parts on the shaft without interfering with nearby mechanisms, and the two piece design enables installation without removing other components from the shaft.
The larger MAXSpline Shaft Collar is designed for both retention and mechanical integration with other ION components. It includes two sets of three #10 clearance holes on a 0.5in pitch, allowing it to be fastened directly to sprockets, plates, and other MAXSpline compatible parts. This enables the collar to serve as both a clamp and a mounting interface for structural or rotational elements. With a 0.5in thickness and a 2.63in outer diameter, it provides a larger contact area and higher clamping capability for applications that require additional strength or component mounting features.
Features

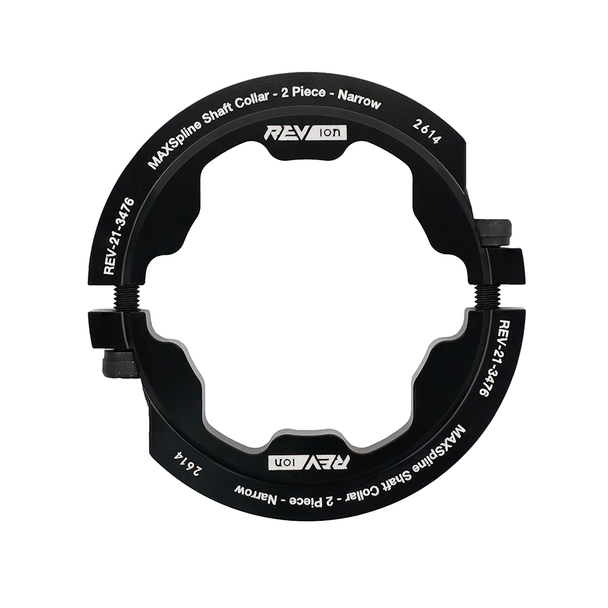

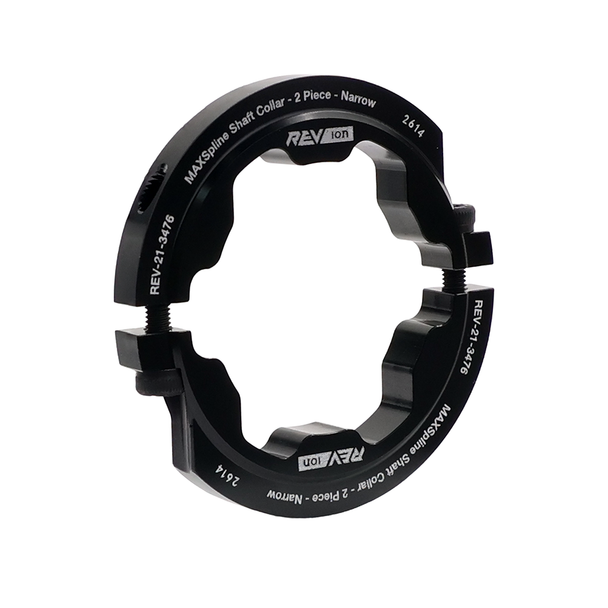

MAXSpline Shaft Collar - 2 Piece - Narrow - Aluminum [REV-21-3476]
- Ultra narrow 0.25in width for minimal space usage
- Lightweight aluminum construction with black anodized finish
- Two piece clamp design for easy assembly around existing shafts
- Utilizes M3 screws to achieve the smallest possible form factor
- Compact and minimal outer diameter for weight and space savings
MAXSpline Shaft Collar - 2 Piece - Aluminum [REV-21-2581]
- 0.5in thick profile for strong clamping force and structural support
- Two sets of three #10 clearance holes on 0.5in pitch for mounting sprockets and MAXSpline components
- Aluminum two piece clamp design with black anodized finish
- Uses #10-32 socket head screws for secure fastening
- Larger outer diameter for increased interface area
Specifications
- Material: 6061 Aluminum
- Finish: Anodized Black
- Bore: MAXSpline
- MAXSpline Shaft Collar - 2 Piece - Narrow - Aluminum
- Drive Size: 2.5mm
- Outer Diameter: 47.6mm (1.88in)
- Width: 6.35mm (0.25in)
- Assembly Weight: 15g (0.033lb)
- MAXSpline Shaft Collar - 2 Piece - Aluminum
- Drive Size: 5/32 in
- Outer Diameter: 66.7mm (2.63in)
- Width: 12.7mm (0.5in)
- Assembly Weight: 81g (0.179lb)
Documentation
Kit Contents
MAXSpline Shaft Collar - 2 Piece - Narrow - Aluminum
| SKU | PRODUCT NAME | QUANTITY |
| REV-21-3476-P01 | MAXSpline Shaft Collar - 2 Piece - Narrow - Aluminum - Half | QTY 2 |
| REV-49-3780 | M3 Socket Head Cap Screw - Fully Threaded - Black-Oxide - 10mm | QTY 2 |

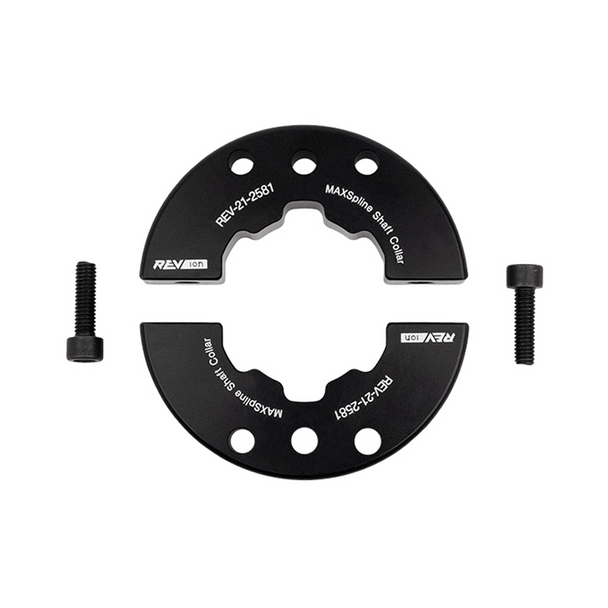

MAXSpline Shaft Collar - 2 Piece - Aluminum
| SKU | PRODUCT NAME | QUANTITY |
| REV-21-2581-P01 | MAXSpline Shaft Collar - Aluminum -Half | QTY 2 |
| REV-29-2916 | Socket Head Screws #10-32 x 5/8in | QTY 2 |
Product Options
| SKU | PRODUCT NAME | CAD & DRAWINGS |
| REV-21-2581 | MAXSpline Shaft Collar - 2 Piece - Aluminum | STEP FILE ONSHAPE DRAWING |
| #REV-21-3476 | MAXSpline Shaft Collar - 2 Piece - Narrow - Aluminum | STEP FILE ONSHAPE DRAWING |
