Description

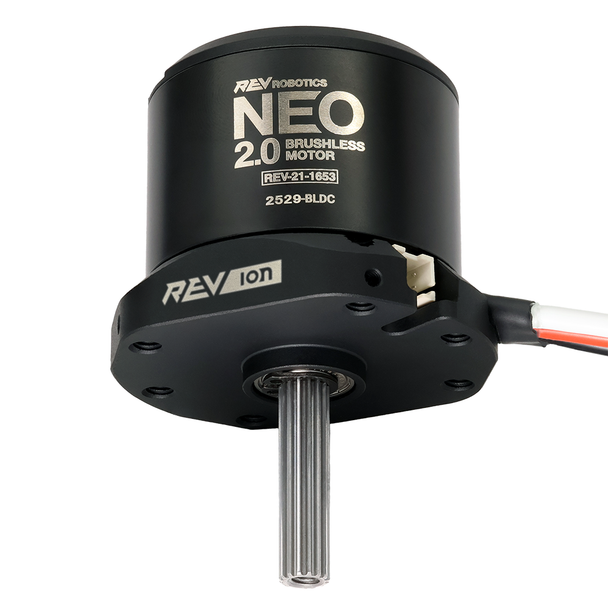

The NEO 2.0 Brushless Motor builds on the proven performance of the original NEO, delivering the same high-efficiency brushless power in a refined package designed for easier integration and mounting. With updates to its shaft, encoder connection, and overall profile, NEO 2.0 offers teams more flexibility and streamlined assembly while remaining fully compatible with existing REV ION ecosystem components.
FRC Legal as of the 2026 season, NEO 2.0 continues to provide the power, efficiency, and durability teams rely on — now with a more compact footprint and service-friendly features that make it easier than ever to use in advanced robotics applications.
What’s New in NEO 2.0
- 15T spline shaft for secure power transfer without the need for keys or keyways
- Detachable encoder cable for easy replacement and serviceability.
- Slimmed 2-inch width profile with exposed outrunner design, allowing mounting within the silhouette of common 2in structural tubing like MAXTube.
- Repositioned sensor board for better thermal reliability.
Features
- High-performance brushless DC motor designed for competitive robotics
- Compatible with all SPARK brushless motor controllers.
- Fully integrated hall-effect encoder for closed-loop control
- Adopts the SPARK Flex mounting pattern for direct compatibility with MAXPlanetary and the broader REV ecosystem, aligning flats for a low-profile fit
- Drop-in replacement for CIM-style motors
- Front and rear ball bearings
- High temperature neodymium magnets
- Motor temperature sensor
- Connectorized motor sensor output for use with the NEO 2.0 Sensor Cable
- Diametrically magnetized magnet on the rotor-end of the shaft to support magnetic encoder.
Specifications
- Nominal Voltage: 12 V
- Motor Kv: 473 Kv
- Free Speed: 5676 RPM
- Theoretical Stall Current: 150 A
- Theoretical Stall Torque: 3.75 Nm
- Theoretical Peak Output Power: 540 W
- Output Shaft: 15T Spline
- Output Shaft Length: 31.5mm (1.24in)
- Output Pilot: 19.05mm (0.75in)
- Body Length: 48mm (1.89in)
- Body Diameter:
- Maximum: 60mm (2.36in)
- Minimum: 50.8mm (2in)
- Mounting Face minimum width: 2in
- Mounting Holes: #10-32 tapped
- Mounting Hole Depth: 9.5mm (0.375in)
- Shield Mounting Screws: M3
- Shield Mounting Screw max depth: 2mm
- Motor Phase Wires
- Length: 150mm (5.91in)
- 12AWG
- Weight: 364g (0.8lb)
Kit Contents
| SKU | PRODUCT NAME | PRODUCT QUANTITY |
| REV-21-1651 | NEO 2.0 | QTY 1 |
| REV-11-1287 | NEO 2.0 Sensor Cable | QTY 1 |
