45mm Flat Plates

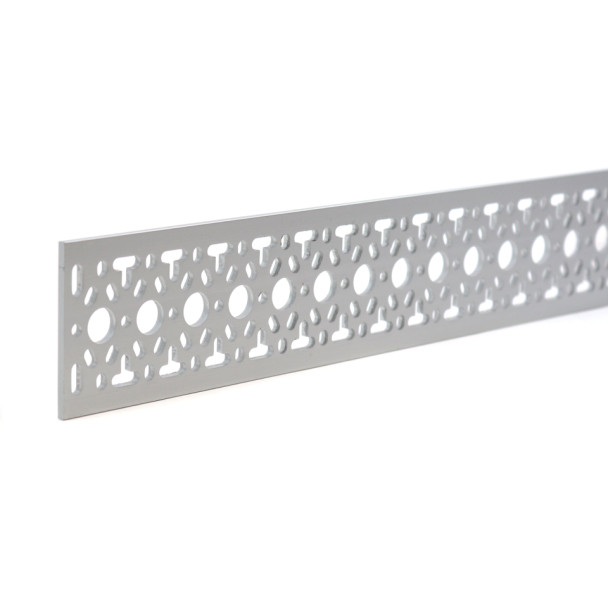

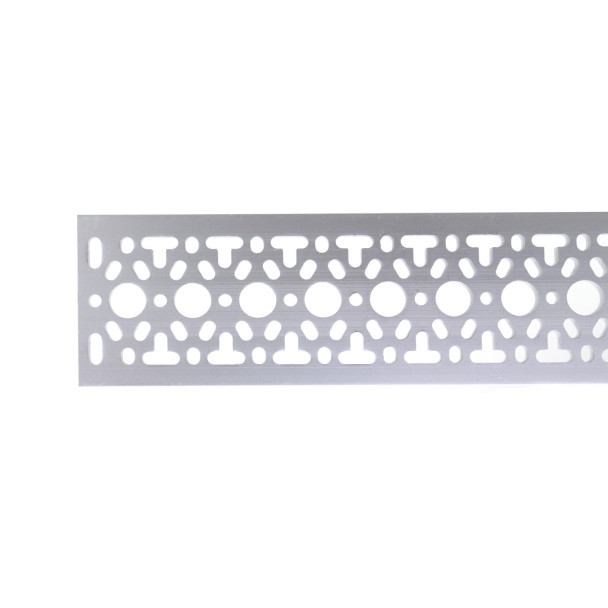

REV 45mm Flat Plate is a 45mm wide, bendable metal featuring the Extended Motion Pattern. This product is a piece that is 440mm long. The Extended Motion Pattern supports M3 hardware for attaching brackets, extrusion, and channel.

Specifications

• Material: 5052 Aluminum
• Length:
  • 24mm - (REV-41-1793)
  • 88mm - (REV-41-1791)
  • 216mm - (REV-41-1787)
  • 280mm - (REV-41-1785)
  • 376mm - (REV-41-1782)
  • 440mm - (REV-41-1780)
•  Width: 45mm
• Hole Pattern: Extended Motion Pattern, M3

CAD & Drawings

• REV-41-1780 STEP File
• REV-41-1785 STEP File
• REV-41-1793 STEP File
• REV-41-1791 STEP File
• REV-41-1787 STEP File
• REV-41-1782 STEP File
• REV-41-1793 Onshape
• REV-41-1791 Onshape
• REV-41-1787 Onshape
• REV-41-1782 Onshape
• REV-41-1785 Onshape
