Description
The REV-46-4520 15T Spline Go No-Go Test Block is an essential precision tool and educational metal block sample designed for rigorous quality control and testing of 15-Tooth (15T) splines. By providing immediate physical verification of tolerances, it is indispensable for engineering and educational applications.

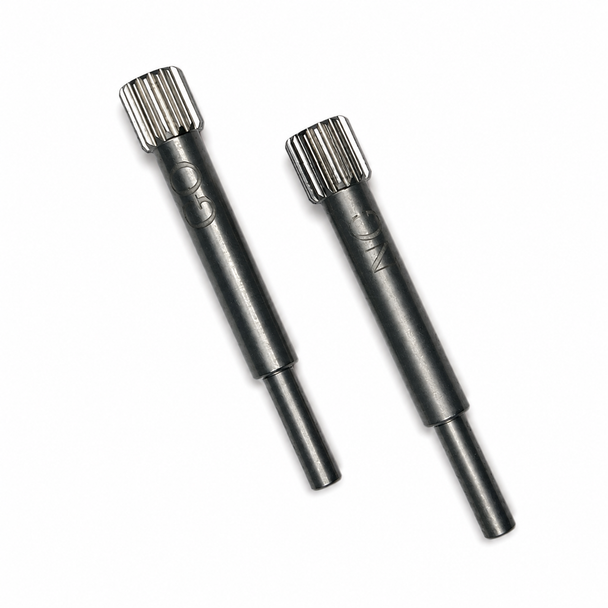

The REV-46-4519 15T Spline Go No-Go Plunge Gauge Set includes:
REV-46-4521 — 15T Spline No-Go Plunge Gauge
REV-46-4522 — 15T Spline Go Plunge Gauge
Features
- Dual Testing Functionality: Equipped with both "GO" and "NO GO" testing regions to verify whether a given 15T spline falls within the acceptable dimensional tolerances.
- Precision Engineering: Designed specifically for evaluating 15T Spline mechanisms, making it an essential component for quality assurance in mechanical assemblies.
- Durable Construction: Manufactured as a solid metal block to withstand repeated testing while maintaining dimensional accuracy.
