Description

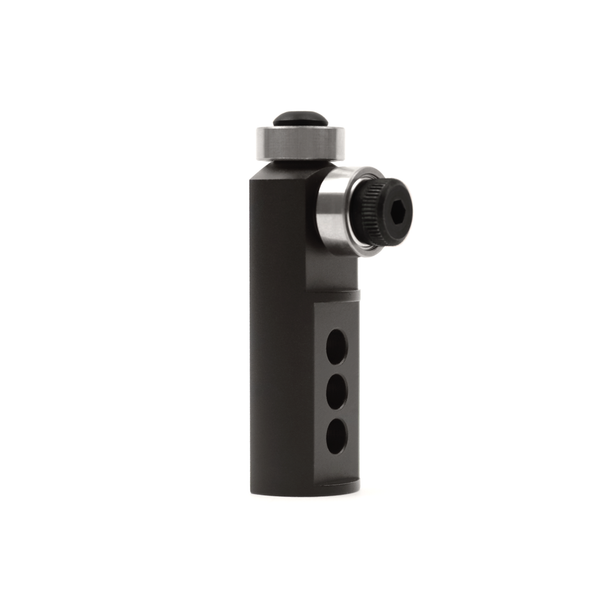

The Elevator Bearing Block (REV-20-2051) is a trusted choice for smooth sliding motion between two pieces of rectangular tubing. It mounts on the narrow, 1in side, of tubing (e.g. 1x1 or 2x1) and uses shielded ball bearings for reduced friction. Its self-locating aluminum blocks simplify assembly, making it ideal for traditional elevator systems.
Features
- Elevator Bearing Block
- Shielded ball bearings provide support in the lateral and thrust axes
- Aluminum blocks are notched to self-locate on the side of rectangular tubing
- Individual bearings support the lateral and thrust axes for further reduced friction
- Aluminum blocks on either side of the tubing support the bearings for easier assembly
- 0.75” spacing between the tubes of each stage
Specifications
- Elevator Bearing Block (REV-20-2051)
- Body Material: Aluminum 6061
- Body Finish: Black Anodized
- Mounting holes: 0.196in for use with #10 fasteners or 3/16in rivets
- Weight (single block assembled): 26g (0.057lb)
