Description

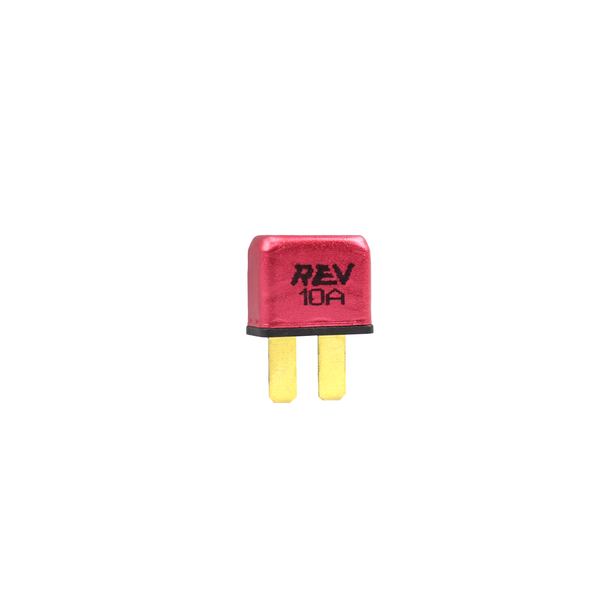

REV Robotics custom ATO sized auto-resetting breakers are designed to give reliable protection for FRC robot actuators. These custom developed breakers adhere to SAE Standard J553 and will give consistent performance even after hundreds of breaker trips. A color-coded anodized aluminum case and stamped ratings allows for easy identification and inspection.
Specifications
- Voltage Rating: 12V DC
- Current Rating: 10A
- Aluminum Anodized Case Color: Red (REV-11-1860)
- Current Rating: 20A
- Aluminum Anodized Case Color: Yellow (REV-11-1861)
- Current Rating: 30A
- Aluminum Anodized Case Color: Green (REV-11-1862)
- Current Rating: 40A
- Aluminum Anodized Case Color: Orange (REV-11-1863)
- Size: ATO/ATC
- Weight: 4.5g (0.01lbs)
Application Note: For the best experience, we do not recommend using the REV 40A breaker in the 20/30A channels of the CTRE Power Distribution Panel. Trip times may be shorter and less consistent compared to the breaker's performance in the 40A rated channels of the REV Power Distribution Hub.
Documentation
CAD & Drawings
Product Options
| SKU | PRODUCT NAME | CAD & DRAWINGS |
| REV-11-1860-PK4 | 10A ATO Auto-resetting Breaker - 4 Pack | STEP FILE ONSHAPE DRAWING |
| REV-11-1861-PK4 | 20A ATO Auto-resetting Breaker - 4 Pack | STEP FILE ONSHAPE DRAWING |
| REV-11-1863-PK4 | 40A ATO Auto-resetting Breaker - 4 Pack | STEP FILE ONSHAPE DRAWING |
