M3 Nuts

M3 Nyloc Nuts (REV-41-1361-PK100) are zinc plated steel nuts compatible with all REV M3 screws or bolts. Contains a nylon insert which increases grip on screw, reducing the chance of the nut loosening over time. Does NOT fit in the channel of our REV DUO 15mm Extrusion System.

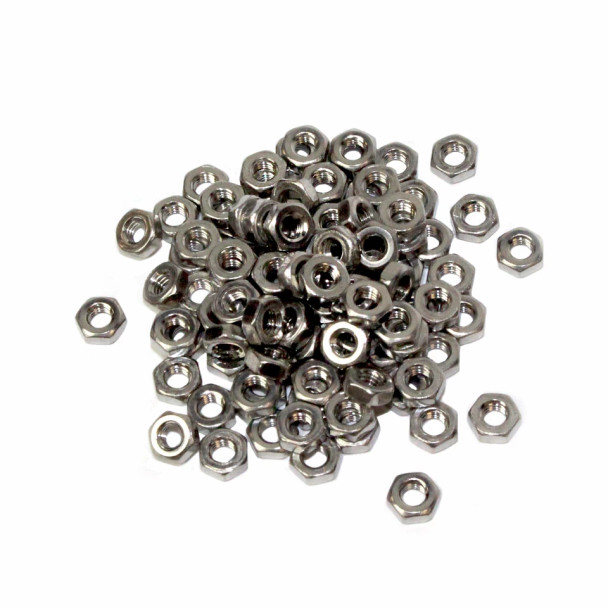

M3 Nuts (REV-41-1126-PK100) Zinc plated steel nuts compatible with all REV DUO M3 screws or bolts. This is a plain nut which does NOT contains a nylon insert.

Specifications

• Thread Pitch: M3 x 0.5
• Material: Corrosion resistant zinc plated steel
• Width: 5.5mm
• Height:
  • 4.4mm (REV-41-1361-PK100)
  • 2.4mm (REV-41-1126-PK100)

Documentation

• DUO Build System Guide

CAD & Drawings

• REV-41-1361 STEP File
• REV-41-1361 Onshape
• REV-41-1361 Drawing
• REV-41-1126-PK100 Drawing
