#10-32 Standoffs

#10-32 Standoffs

$5.75 - $14.00
Brand:
ION
In Stock & Ready To Ship!
Current Stock:Only left:

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax

Description

#10-32 Standoffs are compatible with the REV ION System and provide spacing for mounting key items on your robot. These standoffs are tapped on each end for a #10-32 thread and have a 3/8in flat to flat dimension, similar to a #10-32 nut.

Specifications

  • Hex Size: 3/8in
  • Material: Aluminum 6061
  • Length: Varies Based on Product Selection (see table below)
  • Weights:
    • 0.75in (19.1mm): 3g (0.007lbs)
    • 1.00in (25.4mm): 4g (0.010lbs)
    • 1.25in (31.8mm): 5g (0.01lbs)
    • 1.50in (38.1mm): 7g (0.01lb)
    • 1.75in (44.5mm): 9g (0.02lbs)
    • 2.00in (50.8mm): 9g (0.02lb)
    • 2.25in (57.2mm): 10g (0.02lb)
    • 2.50in (63.5mm): 11g (0.02lb)
    • 2.75in (69.9mm): 13g (0.03lbs)
    • 3.00in (76.2mm): 13g (0.03lb)
    • 4.00in (101.6mm): 18g (0.04lb)
    • 5.00in (127.0mm): 23g (0.05lb)
    • 6.00in (152.4mm): 27g (0.06lb)
    • 8.00in (203.2mm): 36g (0.08lb)
    • 36.00in (914.4mm): 158g (0.35lbs)

Documentation

Product Options

 SKU   PRODUCT NAME   CAD & DRAWINGS
 REV-21-2062-PK4   #10-32 Standoff - 0.75in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2063-PK4   #10-32 Standoff - 1.00in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2065-PK4   #10-32 Standoff - 1.25in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2066-PK4   #10-32 Standoff - 1.50in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2067-PK4   #10-32 Standoff - 1.75in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2068-PK4   #10-32 Standoff - 2.00in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2069-PK4   #10-32 Standoff - 2.25in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2070-PK4   #10-32 Standoff - 2.50in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2071-PK4   #10-32 Standoff - 2.75in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2072-PK4   #10-32 Standoff - 3.00in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2073-PK4   #10-32 Standoff - 4.00in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2074-PK4   #10-32 Standoff - 5.00in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2075-PK4   #10-32 Standoff - 6.00in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2553-PK4   #10-32 Standoff - 8.00in - 4 Pack   STEP FILE ONSHAPE DRAWING
 REV-21-2076   #10-32 Standoff - 36.00in   STEP FILE ONSHAPE DRAWING

Related Products

M3 Standoffs
Quick view

M3 Standoffs

$2.75 - $11.50
M3 standoffs are compatible with the REV DUO System and are perfect for raising one assembly above another or as linkages when paired with male ball joint rod ends (REV-49-1561)...
Options
M3 Standoff Bundle
Quick view

M3 Standoff Bundle

REV-45-1899
$103.50
The M3 Standoff Bundle is perfect for raising one assembly above another or as linkages. Standoffs are also commonly used with REV DUO C Channel to properly space the channel in order to...
Add to Cart
#10-32 Socket Head Screws
Quick view

#10-32 Socket Head Screws

$4.00 - $30.00
Steel hardware of the appropriate size to work with the REV ION System. Length measured from tip to underside of screw head. Documentation ION Build System Guide
Options
#10-32 Shaft End Screws
Quick view

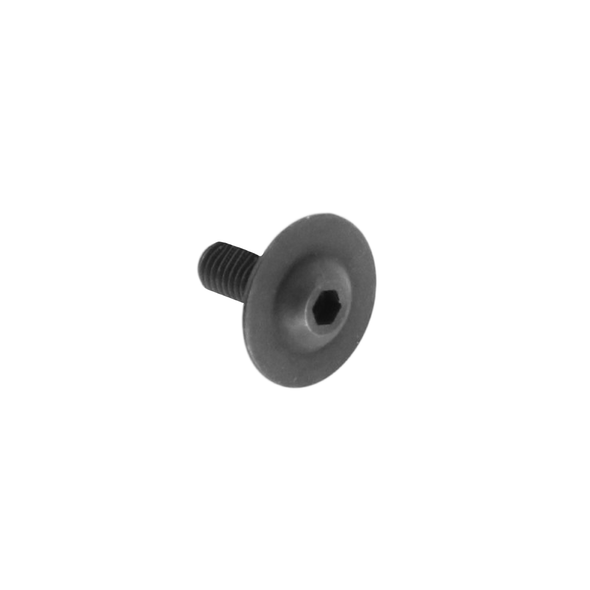

#10-32 Shaft End Screws
