Magnetic Limit Switch

×
×
Price:
$10.00
SKU:
REV-31-1462
Quantity:
Quantity:
Description
Documentation & Resources
Product Videos
Reviews
Warranty
Also Viewed
  • Product Description

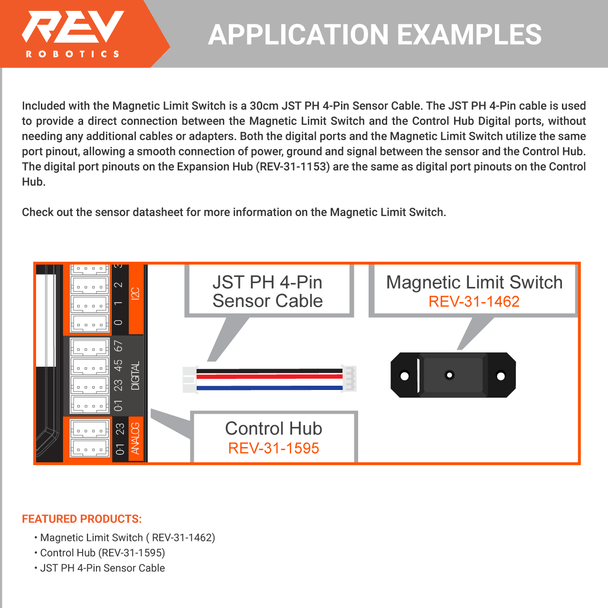

    The REV Robotics Magnetic Limit Switch is a three-sided active-low digital hall effect switch with three internal hall effect elements located on the top and sides of the sensor. The three elements are connected in parallel so that any one of them will trigger the sensor.

    Hall effect sensors detect the presence of a magnetic fields. The REV Magnetic Limit Switch is an omnipolar momentary switch meaning it will trigger when there is sufficient field strength of either magnetic pole (north or south) detected.

    Specifications

    • Sensor Type: Digital, Active-low
    • Voltage Range: 3.3V - 5.0V
    • Signal Pinout: n & n+1
    • Magnetic Polarity: Omnipolar (both north & south)
    • Typical Trigger Distances*
      • Top: 10mm
      • Side: 5mm
    • Typical Hysteresis*: 5mm
    • Typical Included Magnet Strength: 4300G (0.43T)

    *Using the included magnet.

    Kit Contents

    • 1 - REV Magnetic Limit Switch
    • 2 - Magnet with mounting tabs
    • 1 - JST PH 4-pin Sensor Cable - 30cm
