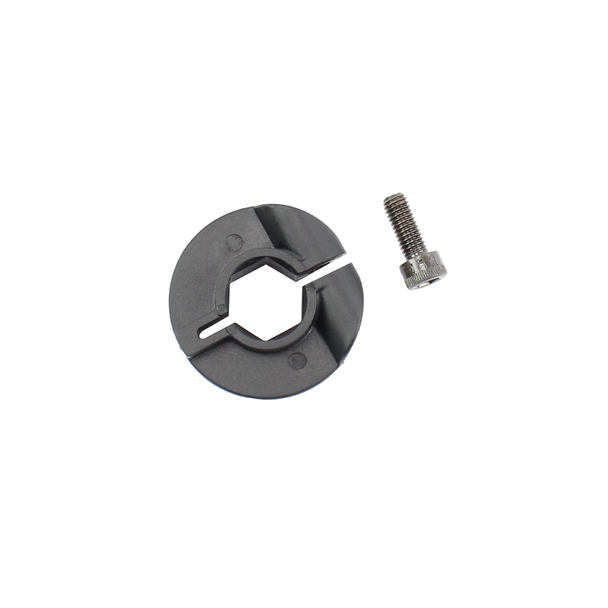

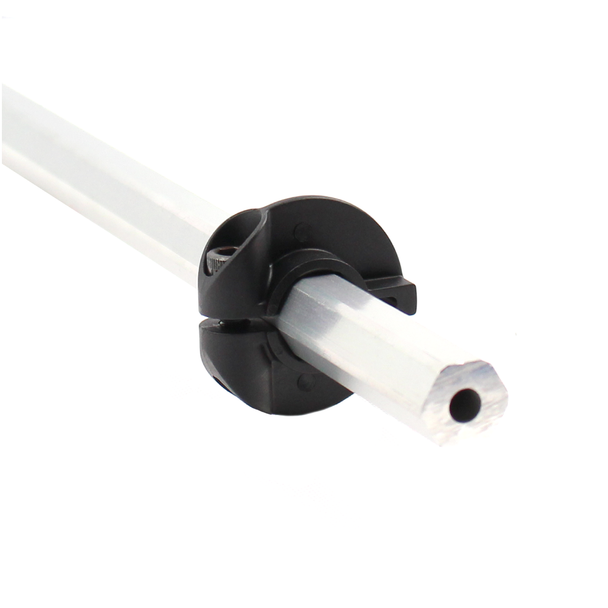

The 1-Piece 1/2" Hex Plastic Shaft Collar is used to prevent gears, sprockets, wheels, and other parts from sliding out of place on a 1/2in hex shaft. Tighten the screw to secure the shaft collar onto the shaft. Screw requires a 5/32in hex driver (not included).
Specifications
- Material: Glass Filled Nylon, Alloy Steel
- Thickness: 0.50in (12.7mm)
- OD: 1.38in (34.9mm)
- Weight: 0.019 lbs (0.304 oz)
- Hex Size: 0.50in (12.7mm)
- Screw Size: 10-32 x 1/2in SHCS
- Hex Key Size: 5/32in
Kit Contents
| SKU | PRODUCT NAME | QUANTITY |
| REV-21-1911 | 1 Piece Shaft Collar - 1/2" Hex Bore - 4 Pack | QTY 4 |
Documentation
CAD
- REV-21-1911 STEP File
- REV-21-1911 Onshape File
- AllREVPartsSTEPzip
