Description

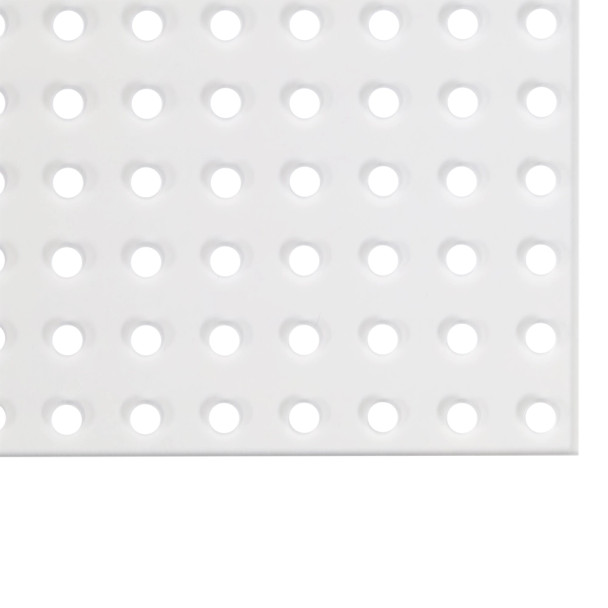

The REV Polycarbonate Sheet 3mm 1/2in Grid Pattern 47in x 23in is a lightweight, clear, and durable plastic material designed for fast and flexible robot construction. Featuring a grid of pre-cut holes on a 1/2in spacing that matches the REV ION pitch, this sheet mounts effortlessly to common build structures with no additional drilling required. The hole pattern helps reduce overall weight while preserving strength, making it ideal for large surface applications.
Clear polycarbonate offers high impact resistance and excellent visibility, allowing teams to see game pieces and robot mechanisms through the material. Its flexibility and low weight make it perfect for intakes, hoods, covers, chutes, funnels, or any subsystem that benefits from a wide, resilient surface. The sheet also excels in rapid prototyping since it can be mounted quickly and iterated on without complex fabrication.
Each sheet arrives with protective masking on both sides to prevent scratches during storage and processing. While simple cuts can be made with strong shears or tin snips hole-to-hole, best results are achieved using a bandsaw, scroll saw, table saw, or hacksaw. Polycarbonate should not be laser cut, and Loctite (threadlockers) or chemicals that degrade polycarbonate must be avoided.
Features
- 1/2in grid pattern matches REV ION pitch for fast mounting and alignment without drilling.
- Lightweight and durable polycarbonate suitable for robot mechanisms that require impact resistance and flexibility.
- Large 47in x 23in sheet size supports wide surface applications like intakes, hoods, funnels, and protective covers.
- Completely clear material improves visibility of internal mechanisms and game pieces.
- Excellent for rapid prototyping with quick mounting and easy modification.
- Machinable with common tools including bandsaws, scroll saws, table saws, and hacksaws; shears can be used for simple cuts.
- Protective masking on both sides keeps surfaces scratch free until installation.
Specifications
- Material: Polycarbonate
- Finish: Clear with masking on both sides
- Sheet Size: 1194mm x 584mm (47in x 23in)
- Thickness: 3mm (0.118in)
- Density: 1.2g/cm^3 (0.0433lb/in^3)
- Weight (with masking): 2251g (4.961lb)
CAD & Drawings
- REV-21-3410 STEP FILE
- REV-21-3410 ONSHAPE
- REV-21-3410 Drawing
